YB11A4-10A-Q 110V/250V Plug In EMI Filter IEC Inlet Filter For Medical Appliance
IEC Inlet Filter With Socket
EMI Filter Specification:
| Item | Emi Power Filter |
| Model | Emi Power Filter YB-A |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 500pcs |
| Price | USD1~2/Meter |
| Lead Time | 5~15 weekday |
Features:
1. Excellent performance/compact structure
2. Optional medical versions((R5) type)
3. Quick connect(6.35*0.8mm),solder or wire
4. High performance and high attenuation power filters with IEC 320 socket
5. (R5) types comply with the requirements of IEC/EN60601-1 for safety clearance, leakage current and high hipot testing.
6. There are a variety of parts and combinations to meet different customer's EMC tests.
Typical Applications:
-- Specially designed for LCD and PDP TV,medical applications,general electrical appliances.
-- Medical equipment
-- Test and measurement equipment
-- Small and medium-sized machines and household equipment
Rule of Nomination of IEC Inlet Fiter
| YB | 11 | A4 | - | 10A | - | Q |
| | | | | | | | | | | | |
| Single Phase | Circuit | Dimension | | Current | | Output Connection |
| | 11:11 circuit | A4 | | 6A : 6 amp | | Q:fast-on tab 250 |
| | | | | 8A : 8 amp | | W:wire |
| | | | | 10A :10 amp | | S:Solder Lug Terminals |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Filter Selection Table:
| Part No. | Case | Rated Currents (A) | Output Connections |
| YB11A4 | A4 | 1 | Fast-on terminal |
| YB11A4 | A4 | 3 |
| YB11A4 | A4 | 6 | Wire |
| YB11A4 | A4 | 8 |
| YB11A4 | A4 | 10 | Solder Lug Terminals |
Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options* | Bleeder resistor (optional) |
G | Leakage current 250V/50Hz | Electrical Schematic | Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11A3-1A | 1A | Q | S | W | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11A3-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A3-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A3-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A3-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A3-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A3-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A3-15A | 15A | Q | S | W | - | - | Fig.1 |
| YB11A4-1A | 1A | Q | S | W | - | - | Fig.1 |
| YB11A4-2A | 2A | Q | S | W | - | - | Fig.1 |
| YB11A4-3A | 3A | Q | S | W | - | - | Fig.1 |
| YB11A4-4A | 4A | Q | S | W | - | - | Fig.1 |
| YB11A4-6A | 6A | Q | S | W | - | - | Fig.1 |
| YB11A4-8A | 8A | Q | S | W | - | - | Fig.1 |
| YB11A4-10A | 10A | Q | S | W | - | - | Fig.1 |
| YB11A4-15A | 15A | Q | S | W | - | - | Fig.1 |
Medical Type Tabulates:
| Model No. | Rated Current
@40°C | Terminal Options | Bleeder resistor](optional) | Medical equipment
5 |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11A3-1A-x(R5) | 1A | Q | S | W | 1 | 5 | - | <5μA | Fig.2 | 115/250V | 50/60Hz |
| YB11A3-2A-x(R5) | 2A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A3-3A-x(R5) | 3A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A3-4A-x(R5) | 4A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A3-6A-x(R5) | 6A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A3-8A-x(R5) | 8A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A3-10A-x(R5) | 10A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A3-15A-X(R5) | 15A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-1A-x(R5) | 1A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-2A-x(R5) | 2A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-3A-x(R5) | 3A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-4A-x(R5) | 4A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-6A-x(R5) | 6A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-8A-x(R5) | 8A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-10A-x(R5) | 10A | Q | S | W | 1 | 5 | - | Fig.2 |
| YB11A4-15A-X(R5) | 15A | Q | S | W | 1 | 5 | - | Fig.2 |

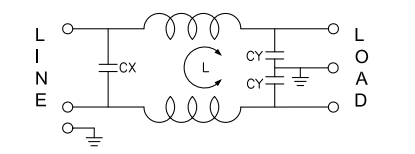

Electrical Schematic:

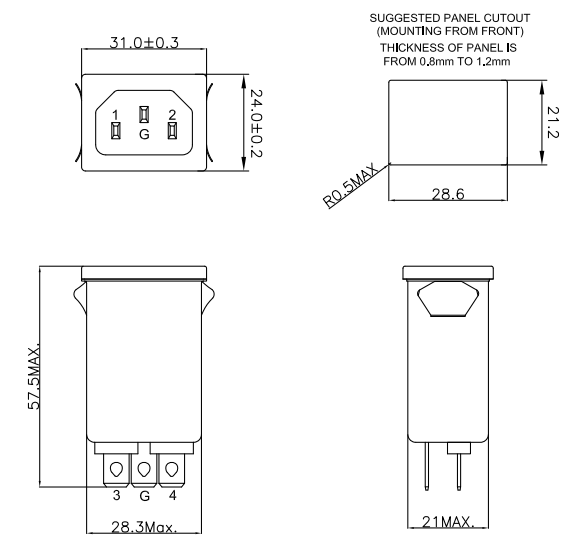

Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| A3 | 56 | 28.5 | 21 | 31 | 24 | | 12.7 | 11.8 | 13.5 | 3.2 | 6.3*0.8 |
| A4 | 56 | 28.5 | 21 | 31 | 24 | | 12.7 | 11.8 | 13.5 | 3.2 | 6.3*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |
Insertion loss table(In 50ohm system according IEC/CISPR No.17)
Measuring Equipment
Before production begins, we test the raw materials in our laboratory to ensure they meet our quality standards, environmental friendliness and safety. Salt spray tester, constant temperature and humidity tester, and pressure tester are some of the testing equipment we use to ensure the quality of our EMI filters from the source.
