IEC inlet socket snap-in compact Mains EMI Filter 250V for Coffee Equipment with switch

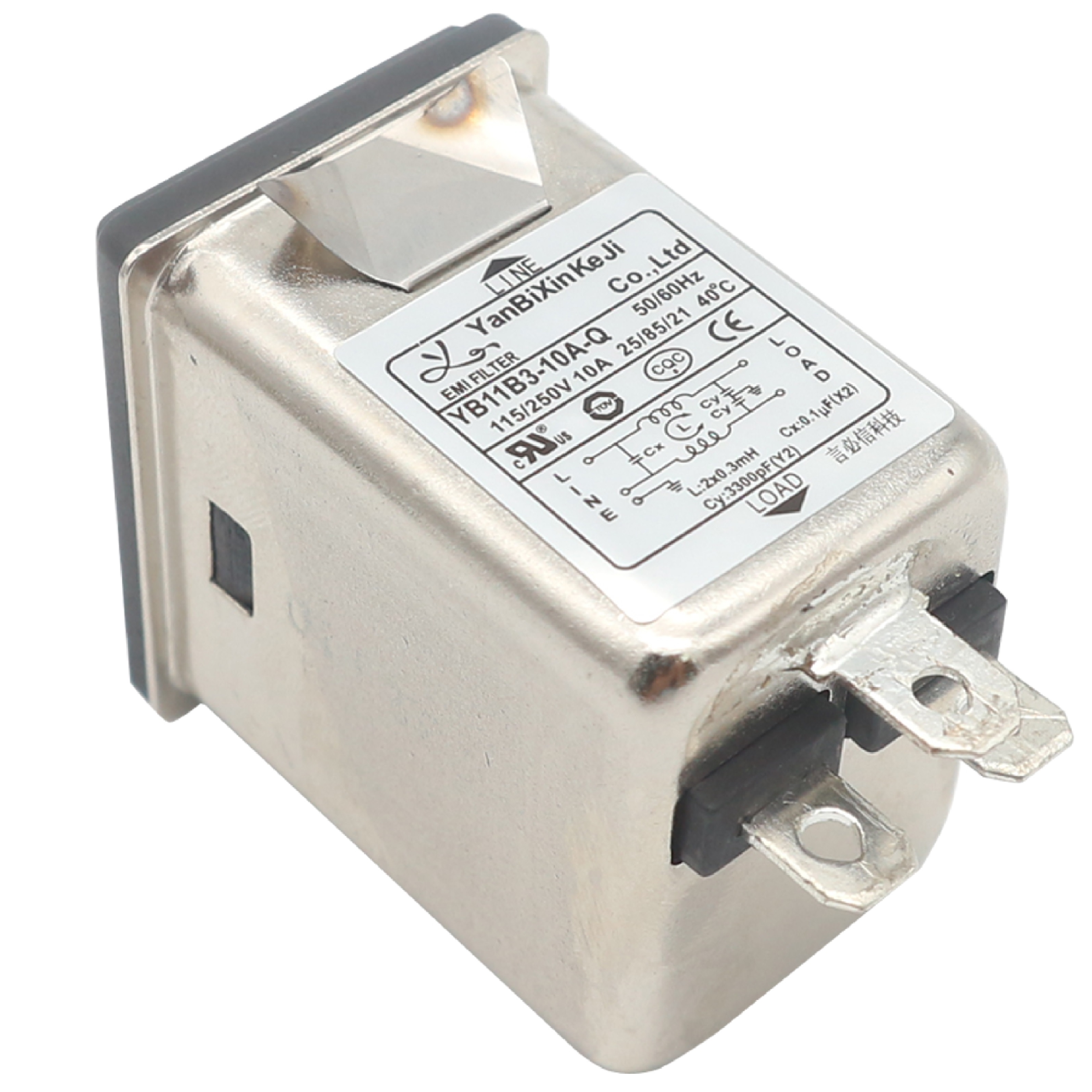

The product pictures:
Technical Specification:
| Item | EMI Power Filter |
| Model | EMI Power Filter YB-B3 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 125VAC 250VAC |
| Rated Current | 1A 3A 6A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | Negotiable |
| Price | Negotiable |
| Lead Time | 5~15 weekday |
Features:
(1) Versions to 10A are available with 1 pole rocker switch
(2) There are a variety of parts and combinations to meet different customer's EMC tests
(3) Customized products according to customer's requirements
Typical Applications:
1.Portable electrical and electronic equipment;
2.Medical equipment;
3.Test and measurement equipment;
4.Small and medium-sized machines and household equipment
5.Single-phase power supply,switch-mode power supply
Rule of Nomination:
YB 11 B3 - 10A - Q ( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options*
| Bleeder resistor (optional) |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11B3-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz |
| YB11B3-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11B3-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11B3-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11B3-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11B3-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11B3-10A | 10A | Q | S | - | - | - | Fig.1 |
| YB11B4-1A | 1A | Q | S | - | - | - | Fig.1 |
| YB11B4-2A | 2A | Q | S | - | - | - | Fig.1 |
| YB11B4-3A | 3A | Q | S | - | - | - | Fig.1 |
| YB11B4-4A | 4A | Q | S | - | - | - | Fig.1 |
| YB11B4-6A | 6A | Q | S | - | - | - | Fig.1 |
| YB11B4-8A | 8A | Q | S | - | - | - | Fig.1 |
| YB11B4-10A | 10A | Q | S | - | - | - | Fig.1 |
Medical Type Tabulates:
| Model No. | Rated Current
@40°C
| Terminal Options
| Bleeder resistor(optional) | Medical equipment
|
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) |
| |
| | | |
| YB11B3-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | <5μA | Fig.3 | 115/250V | 50/60Hz |
| YB11B3-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B3-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B3-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B3-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B3-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B3-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B4-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B4-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B4-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B4-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B4-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B4-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.3 |
| YB11B4-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.3 |
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Electrical schematic:
Fig.1
Fig.3
Mechanical Dimension(Unit: mm)
| Case | A | B | C | D | E | F | G | H | I | J | K |
| B3/B4 | 52 | 28 | 39.5 | 30 | | 39 | 13 | 11 | 12.5 | | 6.35*0.8 |
| Tolerances | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |

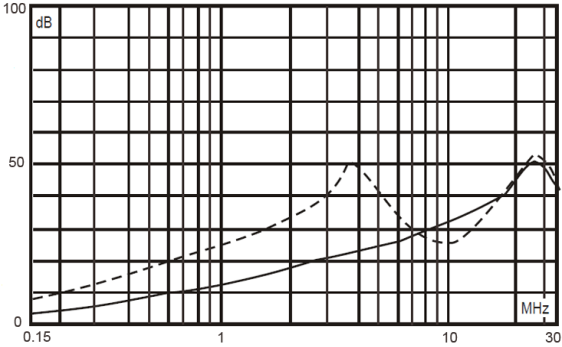

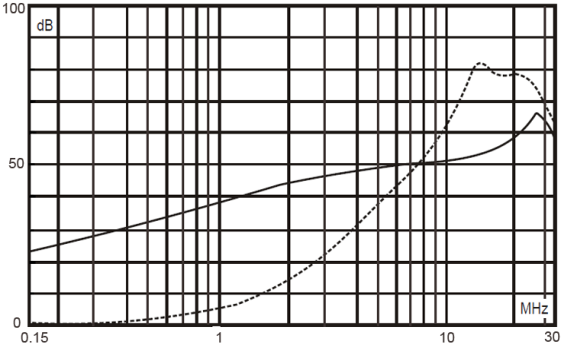

Insertion loss table(In 50ohm system according to IEC/CISPR No.17)
Common mode -------- differential mode
1A 3A
6A 8A
10A
Packaging
Power Line Filter: CTN/192pcs
N/G W.: 12/13.5KG
Measures:0.565*0.285*0.225m
Shipment
---Shipping terms: DHL, UPS, FedEx, TNT, EMS, or the carrier.
---Port is Shenzhen or as requests.
